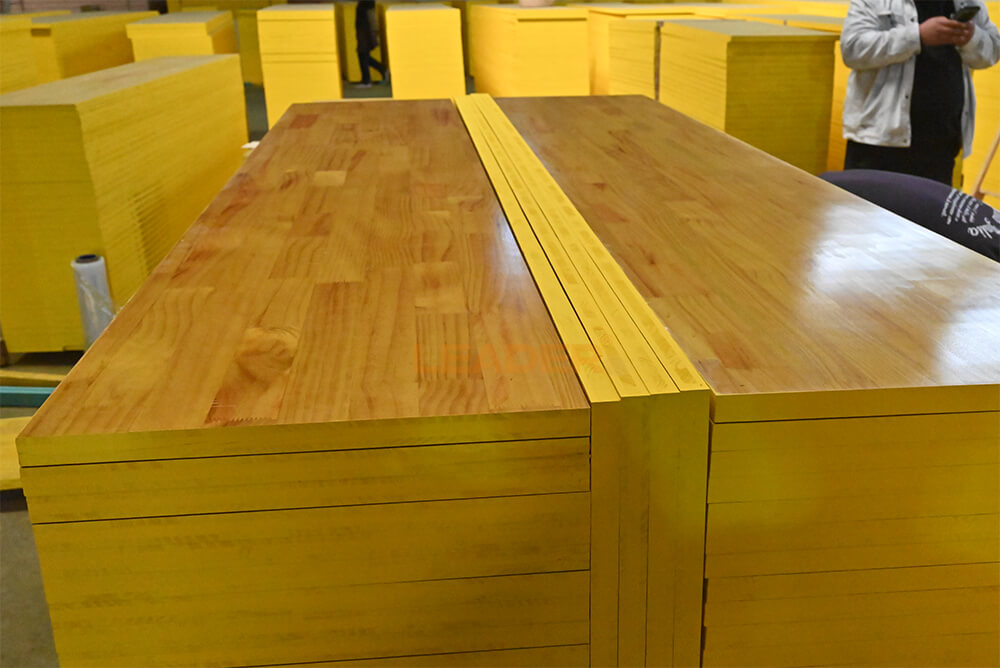

3 Ply Shuttering Panel for Concrete Formwork
LUJU Leader Wood manufactures premium-quality 3 Ply Shuttering Panels designed for concrete formwork and construction applications. Made from selected solid wood veneers bonded with waterproof adhesive, these panels provide excellent strength, dimensional stability, and multiple reuse cycles on construction sites.
Our 3-ply formwork panels are widely used in residential, commercial, industrial, and infrastructure projects where smooth concrete surfaces and reliable formwork performance are required.
Product Specifications
| Item | Specification |
|---|---|
| Product Name | 3 Ply Shuttering Panel |
| Core Material | Spruce / Pine / Fir |
| Structure | 3 Layers Cross Laminated |
| Thickness | 21mm / 27mm |
| Width | 500mm |
| Length | 1000mm / 1500mm / 2000mm / 2500mm |
| Glue | Waterproof Melamine / WBP |
| Surface Coating | Yellow Protective Coating |
| Moisture Content | 8%-12% |
| Edge Treatment | Waterproof Sealed Edges |
| Reuse Times | 30-50+ Cycles |
| Application | Concrete Formwork System |
Key Features
High Structural Strength
The cross-laminated three-layer construction provides excellent load-bearing capacity and dimensional stability during concrete pouring.
Waterproof Performance

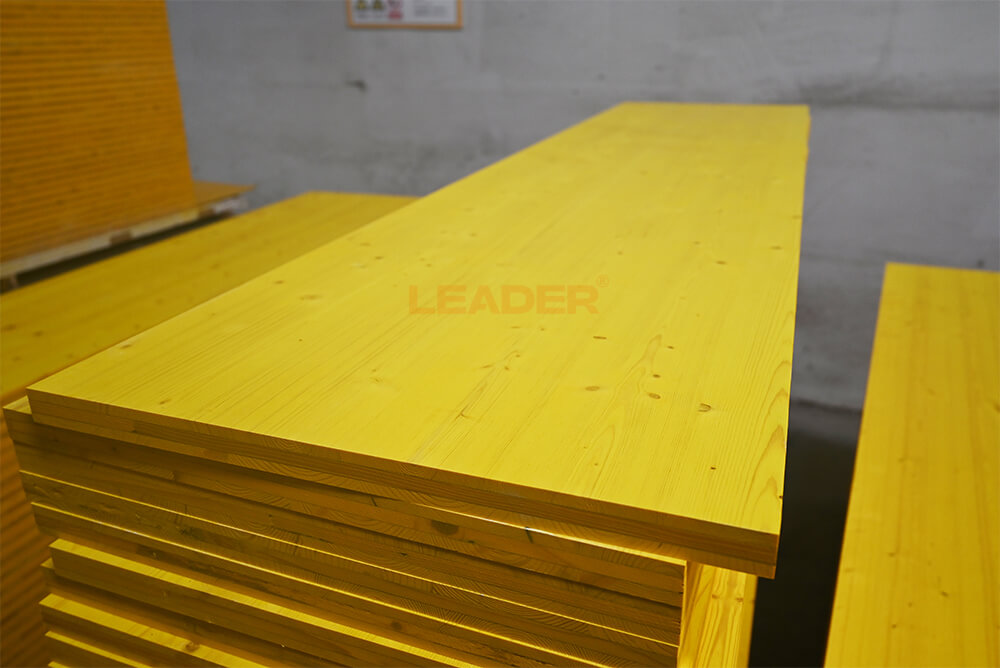

Manufactured with high-quality waterproof adhesive and sealed edges to withstand moisture and harsh job-site conditions.
Multiple Reuse Cycles
Designed for repeated use, reducing overall formwork costs and improving project efficiency.
Smooth Concrete Finish
The specially treated surface delivers clean and smooth concrete results with minimal surface defects.
Easy Handling
Compared with steel formwork, 3-ply shuttering panels are lightweight, making transportation, installation, and dismantling easier.
Applications
Wall Formwork
Suitable for vertical concrete wall casting systems.
Slab Formwork
Provides stable support for concrete slab construction.
Column Formwork
Ensures accurate concrete column formation with smooth surfaces.
Bridge & Infrastructure Projects
Widely used in bridges, tunnels, and civil engineering projects.
Residential & Commercial Buildings
Ideal for repetitive concrete construction works.
Advantages of LUJU 3 Ply Shuttering Panels
Strict Raw Material Selection
Only carefully selected timber is used to ensure consistent quality and structural performance.
Advanced Manufacturing Technology
Modern production lines guarantee precise dimensions and stable panel quality.
Export Experience Worldwide
Our products are exported to Europe, Middle East, Southeast Asia, South America, and Africa.
Customized Solutions
Customized dimensions, coating colors, branding, and packaging are available according to customer requirements.
Packaging & Loading
- Standard Export Pallets
- Steel Strapping Reinforcement
- Waterproof Packaging Protection
- Container Loading Optimization
- OEM Packaging Available
FAQ
What is the difference between 21mm and 27mm shuttering panels?
27mm panels provide higher load capacity and are suitable for heavy-duty construction projects, while 21mm panels are commonly used for standard concrete formwork.
How many times can the panel be reused?
Depending on site conditions and maintenance, panels can typically be reused 30–50 times or more.
Are customized sizes available?
Yes. Customized dimensions and specifications are available.
Can you provide OEM branding?
Yes. Private label and OEM production are supported.
Request a Free Quote
Looking for a reliable 3 Ply Shuttering Panel manufacturer?
LUJU Leader Wood offers:
✓ Factory Direct Pricing
✓ Stable Quality Control
✓ Fast Delivery
✓ Customized Specifications
✓ Global Export Service
Contact us today for samples and quotations.
