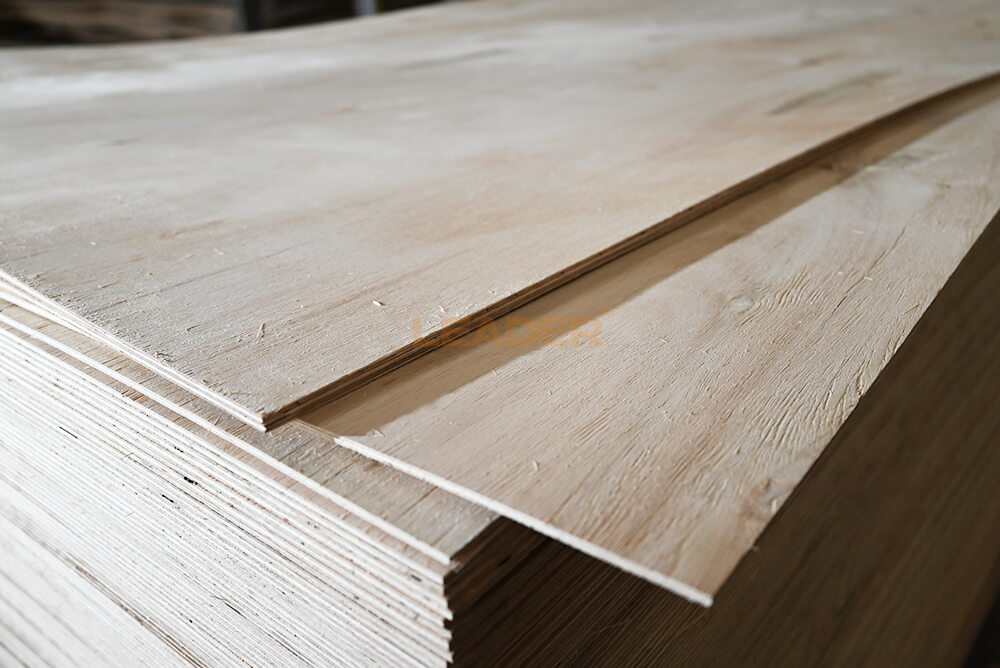

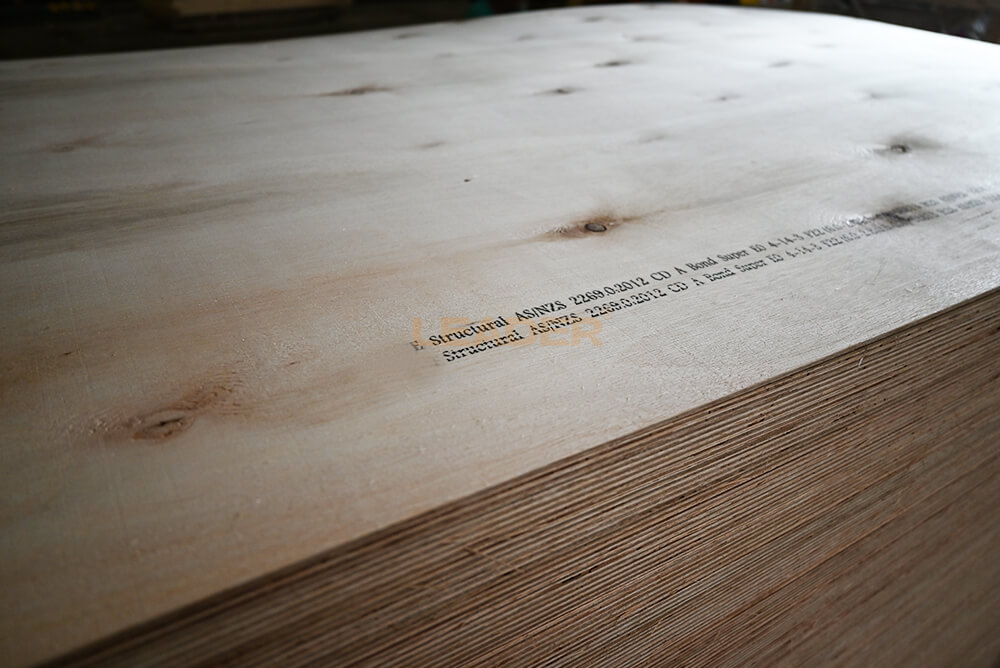

F22 Hardwood Bracing Plywood
F22 Hardwood Bracing Plywood for Structural Wall Bracing
F22 Hardwood Bracing Plywood is a structural-grade plywood panel specifically designed for wall bracing and timber frame reinforcement applications. Manufactured from high-quality hardwood veneers and bonded with durable A-Bond phenolic adhesive, it delivers excellent racking resistance, dimensional stability, and long-term structural performance.
Engineered to comply with Australian and New Zealand structural plywood requirements, F22 bracing plywood is widely used in residential housing, commercial buildings, modular construction, and light industrial projects. Its high strength-to-weight ratio allows builders to achieve reliable structural bracing while maintaining easy handling and installation. F22 bracing plywood is commonly manufactured to AS/NZS 2269 standards and used for wall and roof bracing systems in timber-framed structures.
Advantages of F22 Hardwood Bracing Plywood
- Structural stress grade F22
- High racking resistance for bracing applications
- Manufactured from selected hardwood veneers
- A-Bond waterproof phenolic adhesive
- Excellent strength and stiffness
- Lightweight and easy to install
- Suitable for wall and roof bracing systems
- FSC-certified material available
- Untreated, H2S and H3.2 treatment options available
- Manufactured to AS/NZS 2269 structural plywood standards
Technical Specifications
| Property | Specification |
|---|---|
| Product Name | F22 Hardwood Bracing Plywood |
| Stress Grade | F22 |
| Core Material | Hardwood Veneers |
| Face/Back Grade | DD / CD / Custom |
| Glue Type | A-Bond Phenolic |
| Standard | AS/NZS 2269 |
| Thickness | 4mm, 4.5mm, 7mm |
| Width | 900mm / 1200mm |
| Length | 2440mm, 2745mm, 3050mm |
| Moisture Content | 8%-14% |
| Formaldehyde Emission | E0 / Super E0 |
| Treatment Options | Untreated, H2S, H3.2 |
| Certification | FSC, CE |
Applications
Typical Uses of F22 Bracing Plywood
Residential Construction
- Timber frame wall bracing
- External wall bracing
- Internal wall bracing
- Roof bracing systems
Commercial Buildings
- Structural wall reinforcement
- Shear wall construction
- Modular buildings
- Prefabricated structures
Industrial Projects
- Site offices
- Portable buildings
- Warehouse partition systems
- Structural reinforcement applications
F22 bracing plywood is specifically designed to resist horizontal racking forces and improve the overall stability of timber-framed buildings.
Why Choose LUJU F22 Bracing Plywood
Professional Structural Plywood Manufacturer
- More than 15 years of plywood manufacturing experience
- Strict production and quality control system
- Stable hardwood veneer supply
- Competitive factory-direct pricing
- OEM and private label service available
- Fast delivery and export support
- Extensive experience supplying Australia and New Zealand markets
FAQ
What is F22 Bracing Plywood?
F22 Bracing Plywood is a structural plywood panel with an F22 stress grade designed for wall bracing and structural reinforcement applications.
What does F22 mean?
F22 refers to the structural stress grade of the plywood, indicating high strength and stiffness suitable for demanding bracing applications.
Is F22 bracing plywood suitable for external walls?
Yes. When appropriately treated and installed according to local building codes, F22 bracing plywood can be used in external wall bracing systems.
What treatment options are available?
Untreated, H2S, and H3.2 preservative treatments are commonly available depending on project requirements.
What standards does the plywood comply with?
F22 bracing plywood is generally manufactured in accordance with AS/NZS 2269 structural plywood requirements.
