How to Select AS 6669-Compliant Formply-A Professional Procurement Guide

author: LEADER WOOD

2026-02-12

1. Introduction: Why AS 6669 is the Non-Negotiable Standard for Australian Formwork

In Australia, concrete formwork demands materials that meet exceptionally high standards. Whether for high-rise floor slabs, bridge piers, or large infrastructure retaining walls, the stability of the formwork system directly determines the quality of the concrete finish and on-site safety.

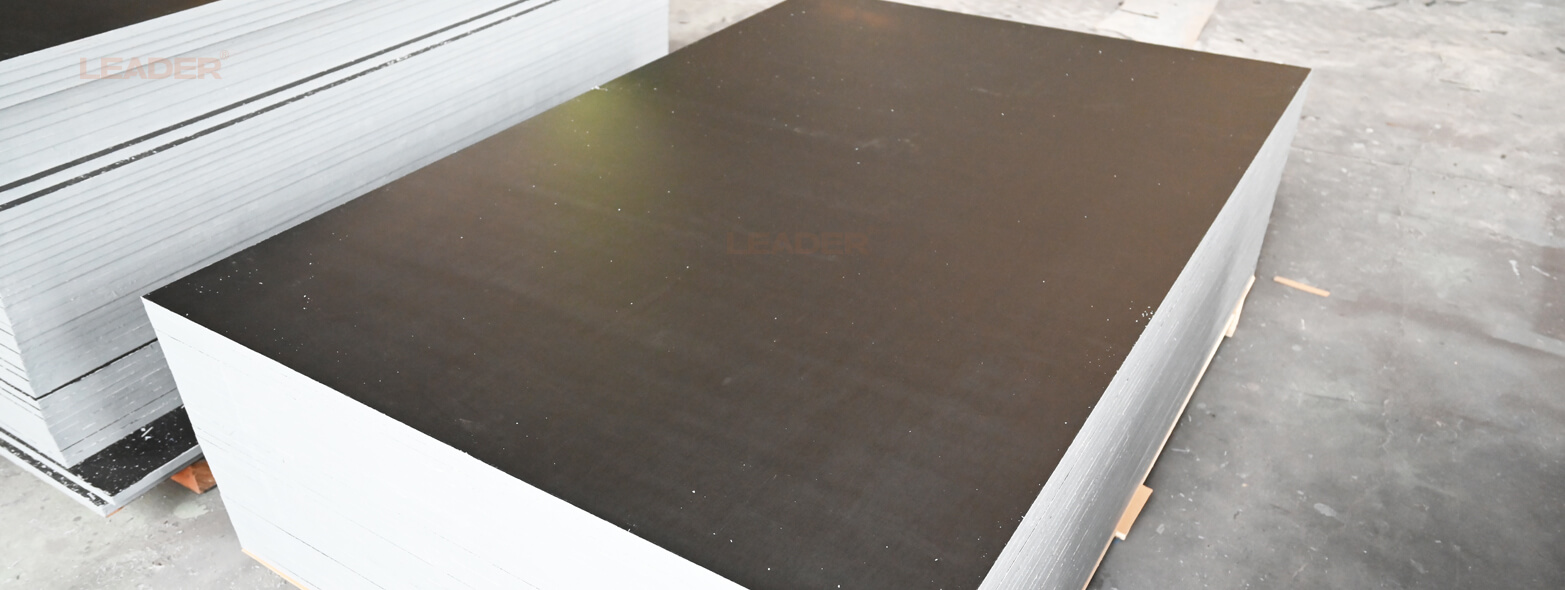

AS 6669:2016 Plywood – Formwork is the dedicated Australian standard for plywood used in concrete formwork. It specifies not only stress grades, stiffness, and bond durability, but also imposes strict requirements on film quality, thickness tolerance, and edge sealing.

For builders, formwork subcontractors, and procurement managers, selecting AS 6669-compliant formply involves far more than simply checking a certificate. This guide provides a practical, professional framework for specification—covering core standard requirements, key performance indicators, and supplier evaluation methods—while demonstrating how Leader Brand F17 Structural Formply meets Australia’s demanding expectations through end-to-end compliance.

2. Decoding AS 6669: Four Critical Indicators You Must Understand

2.1 Stress Grade – What Do F17, F14 and F11 Actually Mean?

AS 6669 requires formply to be clearly marked with its stress grade. Common grades include F11, F14, and F17, where the number indicates the characteristic bending strength (MPa) .

Grade	Application	Core Requirement
F11	Lightweight structures, low-turnover projects	Basic strength, suitable for non-critical areas
F14	Medium-duty formwork	Balance between strength and cost
F17	Heavy-duty formwork, high turnover, large spans	High load capacity, repeated use, minimal deformation

Selection Advice:
For Australia’s typical high-rise core walls, major infrastructure, and high-rise formwork, F17 is the minimum benchmark for safety and reusability. Leader Brand F17 Structural Formply undergoes rigorous mechanical testing in full compliance with AS 6669, ensuring that every sheet consistently delivers Modulus of Elasticity and Bending Strength well above the F17 threshold.

2.2 Bond Durability – How to Tell If Formply Can Survive an Australian Summer?

Australia’s climate varies widely—from the humidity of Queensland to the intense UV exposure in Darwin. Formwork is frequently exposed to high moisture, extreme heat, UV radiation, and rain.

AS 6669 mandates the use of Type A bond (phenolic resin) , requiring WBP (Water and Boil Proof) level durability.

Selection Advice:
Simply claiming “waterproof” is insufficient. Verify that the bond strength meets AS/NZS 2098.2 boiling test requirements. Leader F17 Formply uses 100% phenolic resin adhesive. Both core veneers and the film-facing layer pass WBP testing. Even under repeated pouring, steam curing, and open-air storage, the plywood maintains interlayer integrity, significantly reducing risks of delamination and blistering.

2.3 Film Quality – The Hidden Difference Behind a Smooth Surface

AS 6669 imposes clear limits on surface absorption, abrasion resistance, and peel strength of overlaid formply. High-quality phenolic-impregnated film not only delivers an off-form concrete finish but also protects the panel from alkaline cement paste attack.

Selection Advice:
Standard films often show wear after just 3–5 pours; premium AS 6669-compliant films can support 10+ reuses. Leader F17 Formply features imported black Dynea phenolic film with precise grammage and fully cured hot-pressing. The dense, smooth surface consistently produces uniform grey concrete finishes, dramatically reducing patching and grinding costs.

2.4 Thickness Tolerance & Flatness – The Hidden Cost Black Hole

AS 6669 requires sanded panels to maintain thickness tolerance within ±0.3 mm. Field data shows that for every 0.1 mm increase in deviation, the probability of joint offset rises by approximately 15%. The resulting concrete grinding, patching, and rework costs often far exceed the initial panel price.

Selection Advice:
Reject vague “meets GB standard” claims. Demand AS 6669-compliant thickness test reports directly from your supplier. Leader’s factory is equipped with inline thickness scanners that inspect every panel. Our 17mm and 18mm stock sizes maintain actual thickness deviation within ±0.2 mm, eliminating height differences at panel joints from the source.

3. Beyond Compliance: From “Certified” to “Cost-Effective”

3.1 Reuse Rate – The Denominator of True Cost

The true cost of F17 formply is not its purchase price, but that price divided by its actual number of reuses.

Low-standard panels: Claim “AS 6669 compliance”, but with thin film and loose core construction, deliver only 4–6 reuses in practice.
Leader F17: Optimized across core density, bond strength, and film wear layers. Under standard site conditions, achieves 10+ high-quality reuses.

Case Study:
On a large mixed-use project in Melbourne, the contractor conducted a side-by-side comparison of three “AS 6669-certified” formply products. Leader F17 showed no significant surface wear and no edge delamination after 12 pours. The cost-per-use was 31% lower than competing products.

3.2 Dimensional Stability – Not Just for Easy Joining

Australian job sites often experience high diurnal temperature swings and sudden rain after heatwaves. Unstable panels may absorb moisture at edges, causing joint mismatch, or shrink, creating gaps.

Leader F17 uses 100% eucalyptus core veneers. Eucalyptus offers high density and uniform fibre structure. Through balanced conditioning,The moisture content at the factory outlet is stably controlled at 10%-12%, closely matching the equilibrium moisture content across most of Australia, minimising on-site dimensional movement.

4. Supplier Evaluation: Four Steps Beyond the Certificate

Step 1: Request Full AS 6669 Type Test Reports

A “certificate” alone is insufficient. Demand third-party or verifiable in-house laboratory reports that clearly show:

Bending strength and Modulus of Elasticity
Bond strength (after boil test)
Surface absorption
Thickness tolerance and squareness

Leader Commitment: Every AS 6669 order can be supported by ISO 17025-accredited laboratory test reports. Key performance data is transparent and traceable.

Step 2: Inspect Core Quality and Filling Practice

Open joints, glue starvation, voids, and excessive patching are primary causes of premature formply failure. Request un-overlaid cross-section photos and check for:

Visible gaps between layers
Decay or discoloration in core veneers
Number and diameter of patches

Leader F17 operates to internal quality standards that exceed baseline AS 6669 requirements. We select high-grade radiata pine and imported eucalyptus. No voided core splicing is permitted, ensuring continuous load transfer across every panel.

Step 3: Specify Edge Sealing Treatment

While AS 6669 does not mandate edge sealing, the panel edge is the shortest path for moisture ingress. Unsealed edges can swell 1–2 mm after a single humid night on site.

Leader F17 offers:

Two-part epoxy edge seal (weather-resistant)
Acrylic emulsion edge seal (economical)
Wax coating available on request

Selection Advice: For high-humidity seasons or extended project durations, edge sealing must be specified.

Step 4: Verify the Supplier’s “Australian Experience”

Compliant panels + a supplier who understands your market = Risk-free procurement.

Why Leader?

BSI Benchmark AS 6669 Certification: Endorsed by the British Standards Institution. Certification includes annual unannounced audits—not a “one-off” paper certificate.
Proven Australian Supply Record: Over 300 containers of AS 6669 formply shipped to Australia annually, covering residential, infrastructure, and mining sectors.
Full Local Documentation Support: We provide AS 6669 Declarations of Compliance, commercial invoices, packing lists, and certificates of origin—all customs-ready.

5. Conclusion: Translating “Standard” into “Certainty”

In Australia, AS 6669 is not the ceiling—it is the entry ticket. Genuinely professional procurement begins after reading the standard’s fine print. It requires penetrating your supplier’s production systems, quality control philosophy, and site support capability.

Leader F17 Structural Formply delivers more than just “compliance.” It translates F17 stress grade, phenolic bond durability, imported film facing, 100% eucalyptus core, and ±0.2 mm tolerance into measurable on-site value: higher reuse rates, lower patching costs, and schedule certainty.

If you are sourcing AS 6669-compliant formply for your Australian project and demand a product that withstands scrutiny and justifies its cost, contact the Leader team today.
