B/D C/D B/D H3.2 Treated Pine Structural Plywood
B/D B/C C/D Grade H3.2 Treated Pine Structural Plywood for Outdoor Construction

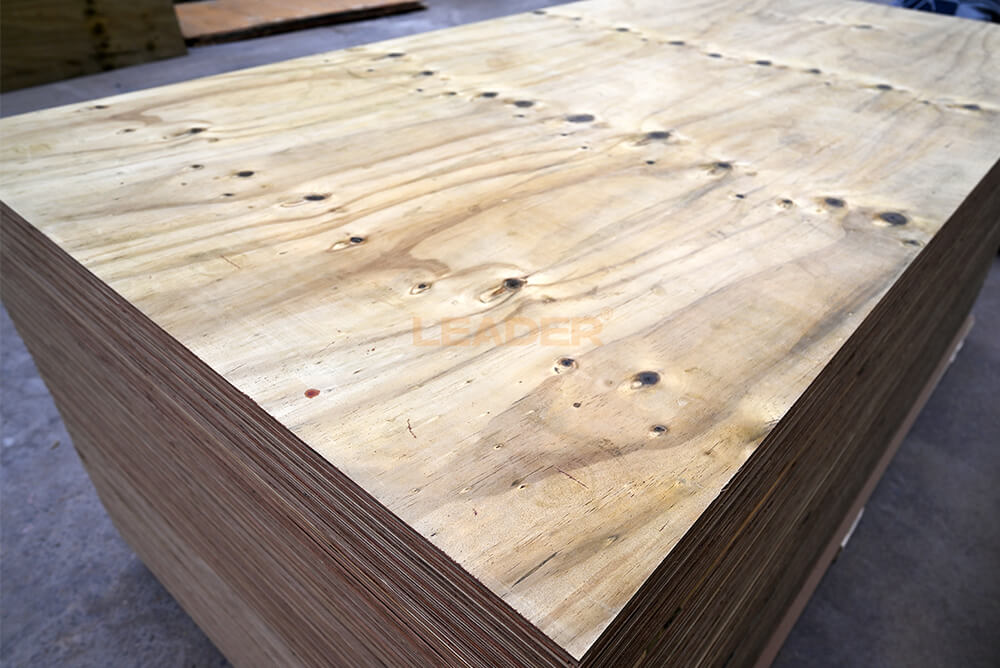

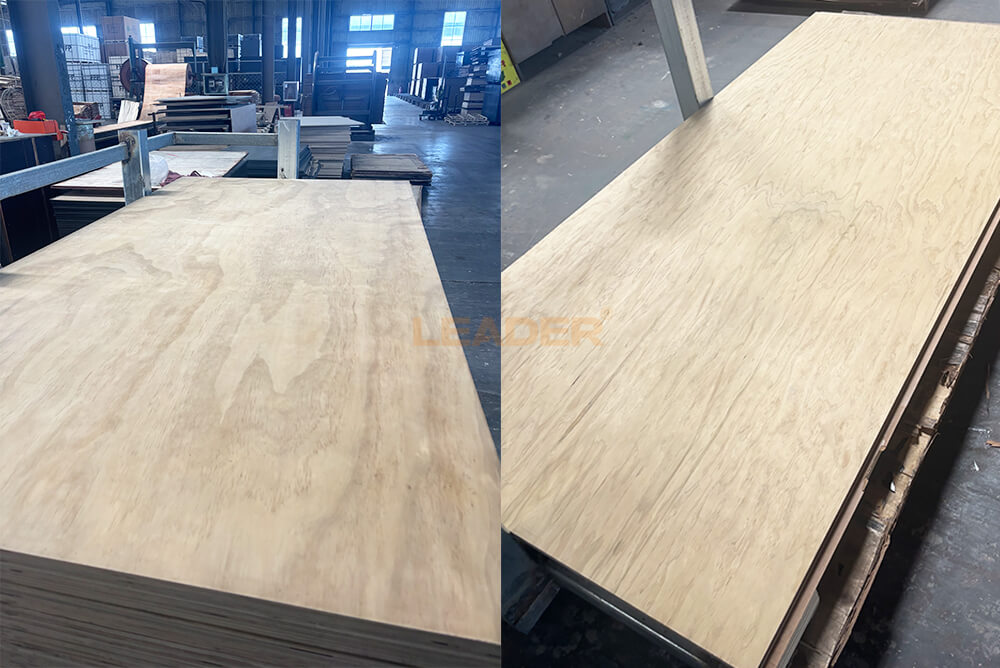

B/D H3.2 Treated Pine Structural Plywood is a high-performance, preservative-treated panel designed for above-ground exterior structural applications. Manufactured from carefully selected pine veneers and bonded with waterproof phenolic adhesive, this plywood delivers long-term durability, excellent structural performance, and resistance to termites and fungal decay.
This treated structural plywood meets AS/NZS 2269 standards and is widely used in residential, commercial, and industrial projects where moisture exposure may occur but panels are not in direct ground contact. It is commonly applied for flooring, wall bracing, roofing, and framing in outdoor or semi-exposed environments.
The H3.2 treatment ensures reliable protection in harsh weather conditions, making it ideal for Australia and New Zealand building standards.
Key Features
- H3.2 preservative treatment for above-ground outdoor applications
- Manufactured from high-quality plantation pine veneers
- Bonded with waterproof phenolic adhesive
- Resistant to termites, fungal decay, and moisture
- High structural strength and load-bearing capacity
- Excellent dimensional stability
- F14 and F17 structural grades available
- Complies with AS/NZS 2269 standards
- Custom sizes and thicknesses available
Technical Specifications
| Property | Specification |
|---|---|
| Product Name | H3.2 Treated Pine Structural Plywood |
| Grade | B/C;B/D;C/D |
| Treatment Level | H3.2 (Above-ground) |
| Core Material | radiata Pine Veneers |
| Core Species | eucalyptus(hardwood) |
| Glue Type | Phenolic WBP |
| Structural Grade | F14 / F17 |
| Face / Back | Pine |
| Thickness | 6mm/9mm/15mm/18mm,Customized according to customers |
| Width | 1220mm |
| Length | 2440mm / Custom |
| Moisture Content | 8–14% |
| Formaldehyde Emission | E0 / E1 |
| Certification | AS/NZS 2269, FSC, CE |
Applications
Residential Construction
- Decking subfloor
- Roof and wall framing
- Pergolas and outdoor structures
- Timber flooring support
Commercial & Industrial Construction
- Exterior wall bracing
- Temporary platforms
- Modular and prefabricated buildings
- Outdoor walkways and decking structures
Why Choose LUJU H3.2 Treated Pine Plywood
- 15+ years of plywood manufacturing experience
- Stable and high-quality raw pine veneer supply
- Strict quality control system
- OEM and custom specifications available
- Fast delivery and export to Australia, New Zealand, and Southeast Asia
- Competitive factory-direct pricing
- Technical support for structural projects
FAQ
What does H3.2 treatment mean?
H3.2 indicates a preservative treatment for above-ground applications where panels are exposed to weather, providing protection against termites and fungal decay.
Is H3.2 plywood suitable for ground contact?
No. H3.2 is designed for above-ground use. For direct ground contact, higher treatment levels like H4 or H5 are required.
What structural grades are available?
F14 and F17 grades are available depending on load-bearing and project requirements.
Can custom sizes and thicknesses be supplied?
Yes. LUJU can produce H3.2 treated plywood in a variety of dimensions and grades to meet project needs.
Does this plywood comply with Australian standards?
Yes. It is manufactured according to AS/NZS 2269 structural plywood standards.
