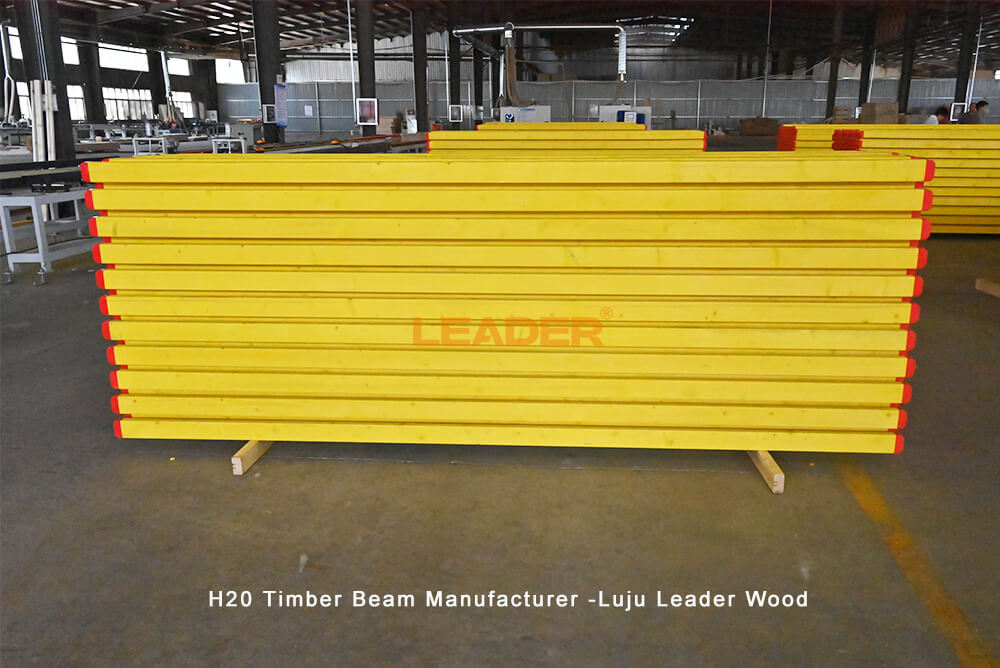

Premium H20 Timber Beam for Concrete Construction

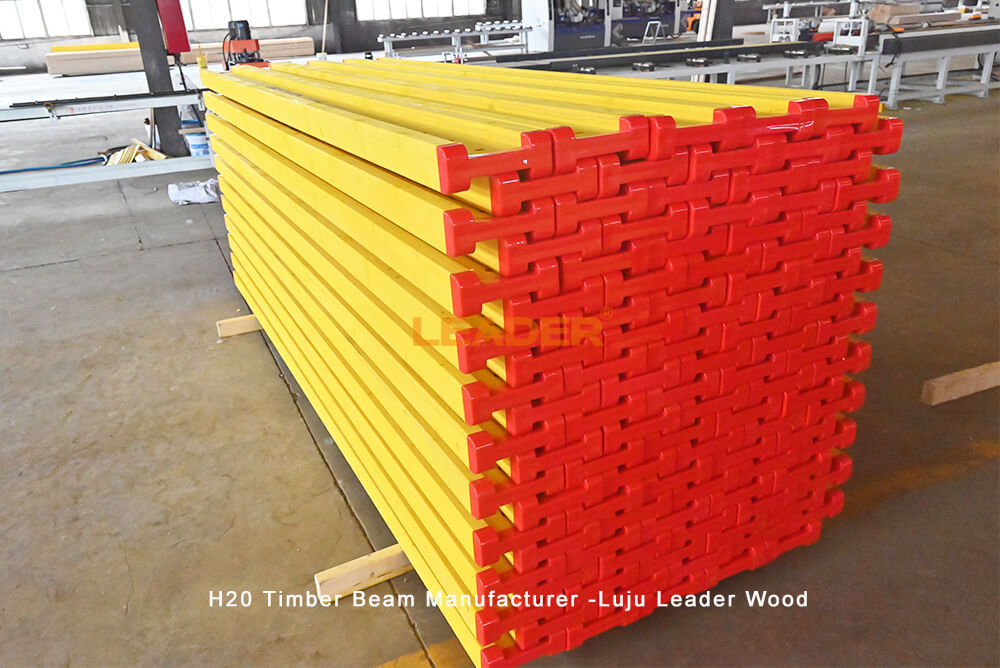

Leader H20 Timber Beam – Durable, Reusable Timber for Formwork
TheLeader H20 Timber Beam is designed for contractors and builders who need durable, reliable, and reusable beams for concrete formwork. Manufactured with premium timber and kiln-dried to strict standards, these beams offer high load-bearing capacity while remaining lightweight for easy handling.
Suitable for residential, commercial, and large-scale infrastructure projects, Leader H20 beams ensure stability during concrete pouring, reduce labor effort, and can be reused multiple times, lowering overall project costs.
With experience in international exports, LUJU Leader Wood provides custom lengths and specifications to meet specific project needs, delivering consistent quality for global construction projects.
Key Features
- High Strength and Durability – Supports heavy concrete formwork safely.
- Lightweight and Easy to Transport – Saves labor and installation time.
- Reusable Timber Beams – Built to withstand multiple construction cycles.
- Customizable Sizes – Available in a variety of lengths and sections.
- Kiln-Dried Quality Timber – Minimizes cracks, warping, and moisture issues.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | H20 Timber Beam for Formwork |
| Brand | Leader |
| Beam Height | 200mm |
| Flange Width | 80 mm |
| Flange Height | 40mm |
| Length | 2.45/2.65/2.9/3.3/3.9/4.5/4.9/5.9m; Customized |
| Web thickness | 27mm/30mm |
| The Material of Flange: | Graded timber or Structural laminated lumber |
| The Material of Web | plywood/3 layers-Plywood |
| Flange wood species | softwood |
| Service Class | 3(exterior conditions) |
| Adhesive | Type I per EN301 |
| Moisture Content | 12+-2% at time of dispatching |
| Weight | Approx 5.0kg/m |
| Standard packaging | 50/100/105pcs per package |
Applications
- Slab formwork
- Wall and column formwork
- Tunnel and bridge construction
- Temporary support in civil engineering
- Commercial and residential construction
FAQ
Q1: What projects are Leader H20 beams best for?
A1: They are ideal for slab, wall, and column formwork in residential, commercial, and civil engineering projects.
Q2: How is the beam quality ensured?
A2: All beams are kiln-dried, coated, and quality-inspected to ensure durability and stability.
Q3: Are these beams reusable?
A3: Yes, high-quality Leader H20 beams can be reused multiple times under proper handling.
Q4: Can the beam dimensions be customized?
A4: Absolutely, we offer custom lengths and specifications based on project requirements.
Q5: Do you ship internationally?
A5: Yes, we export worldwide, including Europe, the Middle East, Asia, and South America.
