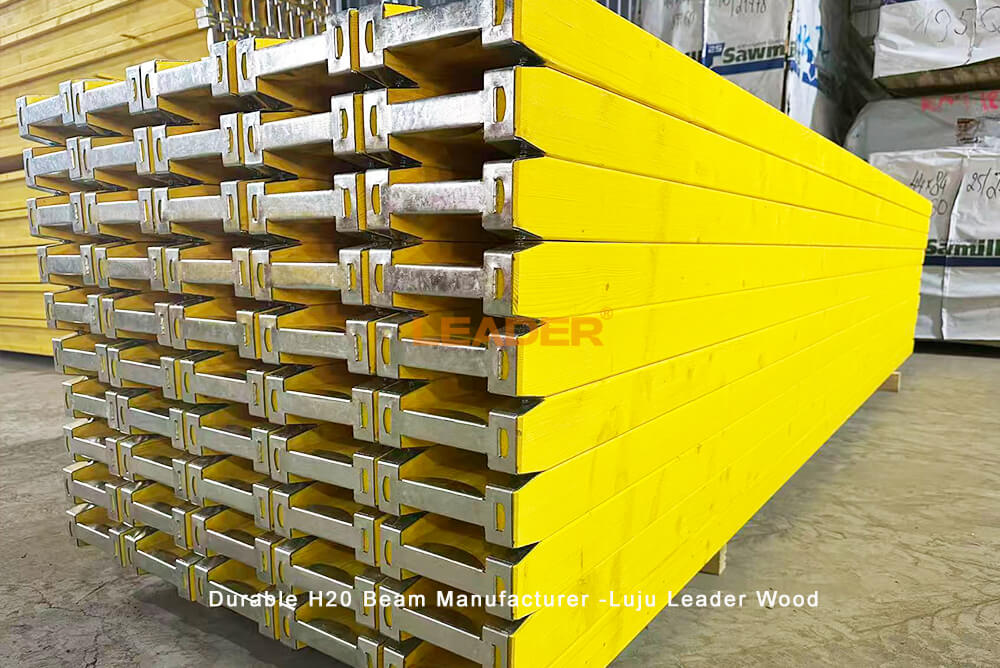

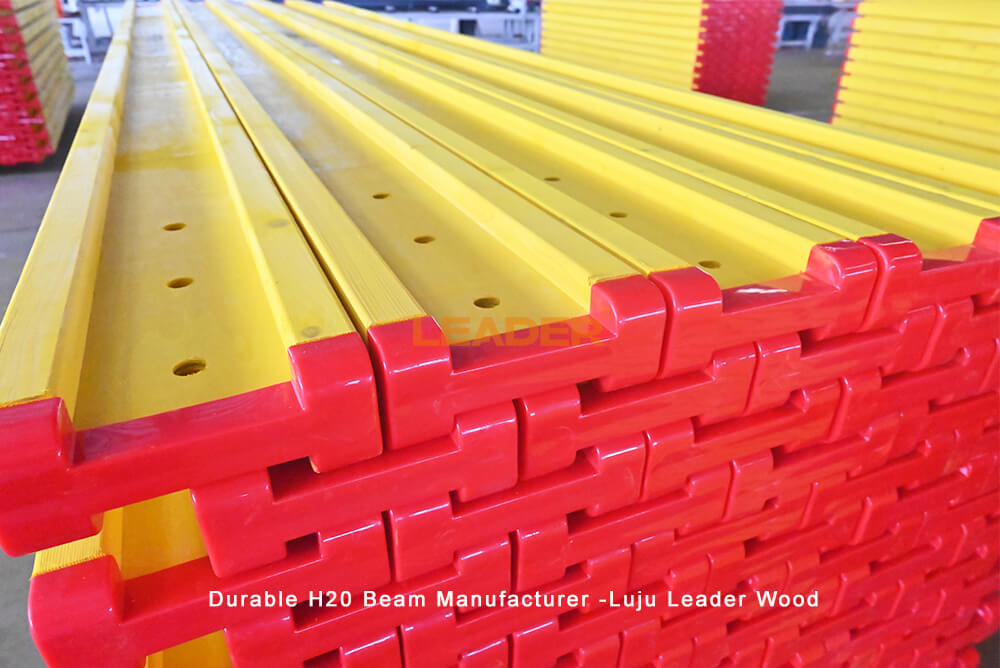

H20 Formwork Beam – Strong, Durable Timber for Construction

H20 Shuttering Beam | High Strength Timber for Formwork

OurH20 formwork beams are specially designed for modern construction projects, offering strength, stability, and durability for concrete formwork systems. Each beam is precision-engineered from selected timber to provide consistent performance under heavy loads.

Ideal for residential, commercial, and civil engineering projects, these beams are easy to handle, lightweight, and can be reused multiple times, making them a cost-effective solution for contractors worldwide.

LUJU Leader Wood manufactures these beams to meet international quality standards, ensuring reliable performance and long service life, even under demanding construction conditions.

Key Features

• High Load-Bearing Capacity – Supports heavy concrete structures safely.
• Lightweight & Easy to Handle – Reduces labor and installation time.
• Long Service Life – Engineered for multiple reuses in formwork.
• Custom Sizes Available – Adaptable to project requirements.
• Weather-Resistant Timber – Kiln-dried with protective coating for stability

Technical Specifications

Parameter	Specification
Product  Name	H20 Timber Beam for Formwork
Brand	Leader
Beam Height	200mm
Flange Width	80 mm
Flange Height	40mm
Length	2.45/2.65/2.9/3.3/3.9/4.5/4.9/5.9m; Customized
Web thickness	27mm/30mm
The Material of Flange:	Graded timber or Structural laminated lumber
The Material of Web	plywood/3 layers-Plywood
Flange wood species	softwood
Service Class	3(exterior conditions)
Adhesive	Type I per EN301
Moisture Content	12+-2% at time of dispatching
Weight	Approx 5.0kg/m

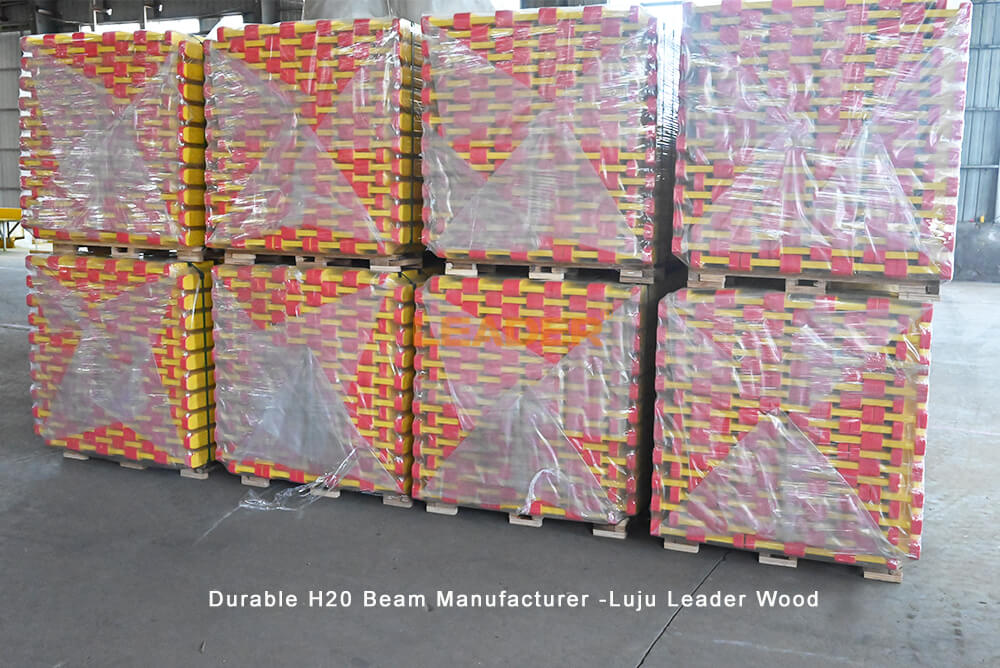

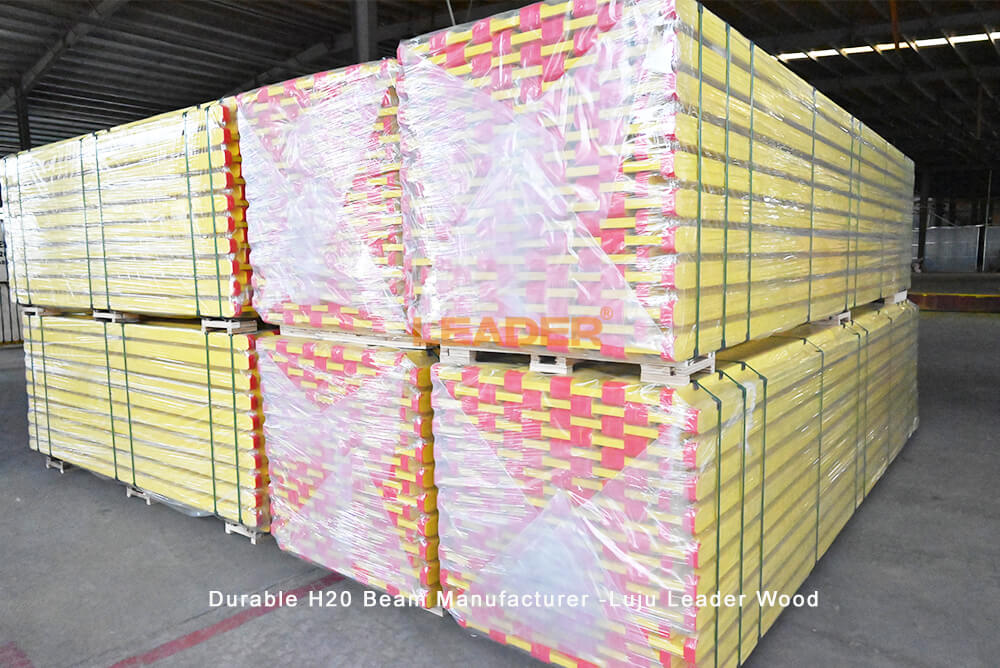

Standard packaging	50/100/105pcs per package
